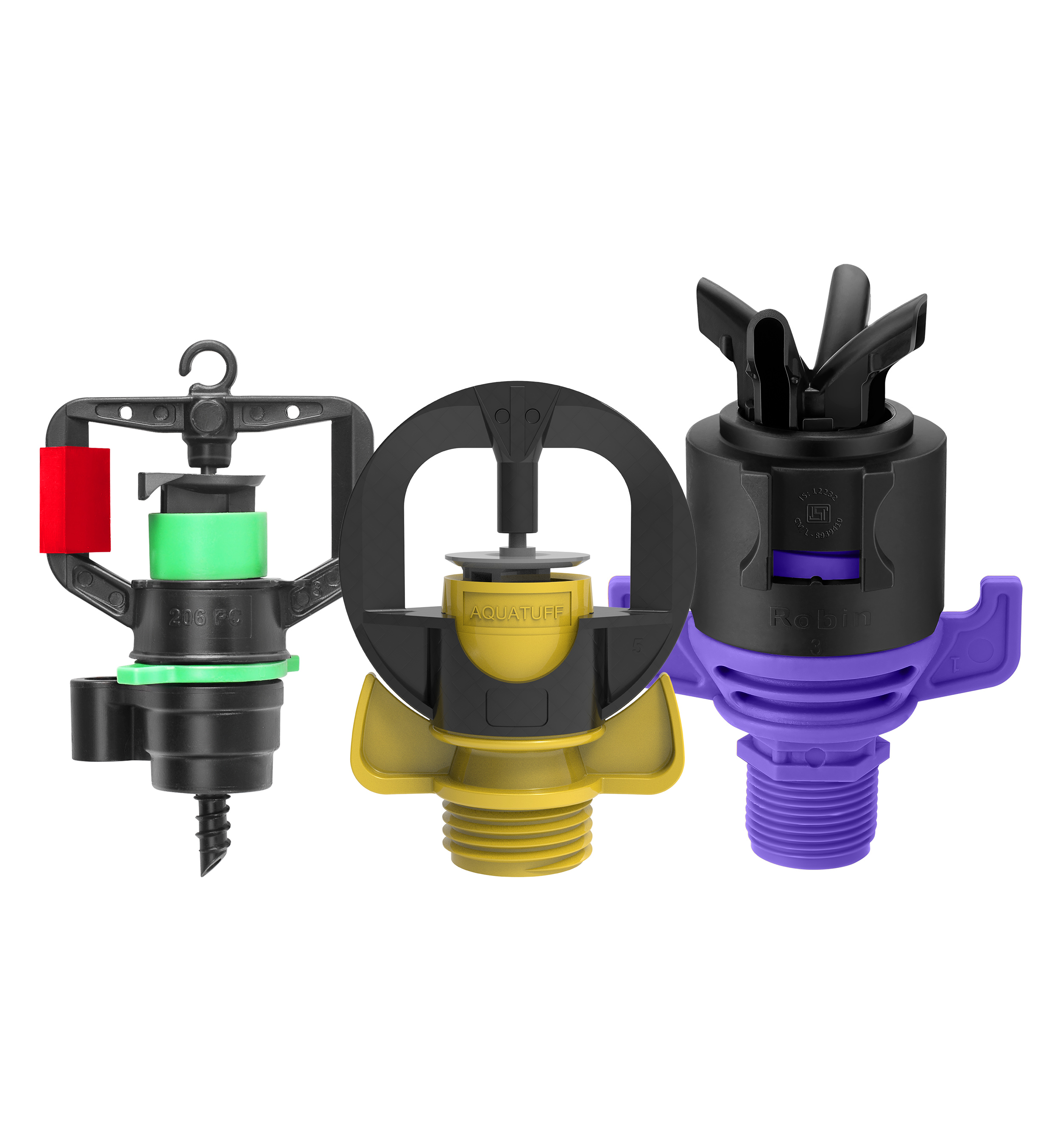

Aqua Micro Sprinklers

Connection: Push-fit, Quick threaded, 3/8” and ½” threaded

Pressure range: 1.5 - 2.5 kg/cm² (21 - 36 psi)

Flow range: 31 - 450 l/h (8 - 119 GPH)

Diameter range: 6 - 13 mtr (20 - 43 ft.)

Connection: Bayonet connection

Pressure range : 1.5-3.0 kg/cm² (21-43 psi)

Flow range: 34 to 162 LPH (9.0 - 43.0 GPH)

Diameter range: 2.4 - 4.8 meters (7 - 16 ft)

Connection: Push-fit

Pressure range: 1.0 - 2.5 bar (14 - 36 psi).

Flow range: 37 - 180 l/h (10-47 GPH).

Diameter range: 6.0 - 9.5 mtr (20 - 31 ft.)

Connection: Push-fit, Quick thread, Barb, 3/8” and ½” thread

Pressure range: 1.5 - 4.0 kg/cm² (21 - 57 psi)

Flow range: 20 - 145 l/h (5 - 38 GPH)

Diameter range: 1.6 - 9.6 mtr (5 - 32 ft.)

Connection: Bayonet connection

Pressure range : 1.5-3.0 kg/cm² (21-43 psi)

Flow Rang: 34 to 102 LPH (9.0 - 26.0 GPH)

Diameter range: 5.5 - 7.6 meters (18 - 24.9 ft)

Connection: 1/2" Male Threaded

Pressure range: 1.0 - 2.5 kg/cm² (14 - 36 psi)

Flow range: 320 - 780 l/h (1.41 - 3.43 GPM)

Diameter range: 11.5 - 12 mtr (38 - 40 ft.)

Connection:  ½” Male Threaded

Pressure range: 1.0 - 3.0 kg/cm² (14 - 43 psi)

Flow range: 235 - 1035 l/h (1.0 - 4.6 GPM)

Diameter range: 10.5 - 14.0 mtr (34 - 46 ft.)

Connection: ½” and ¾” male thread

Pressure range: 0.7 - 2.0 kg/cm² (10 - 28 psi)

Flow range: 335 - 1350 l/h (1.5 - 6.0 GPM)

Diameter range: 12.0 - 17.0 mtr (39 - 56 ft.)

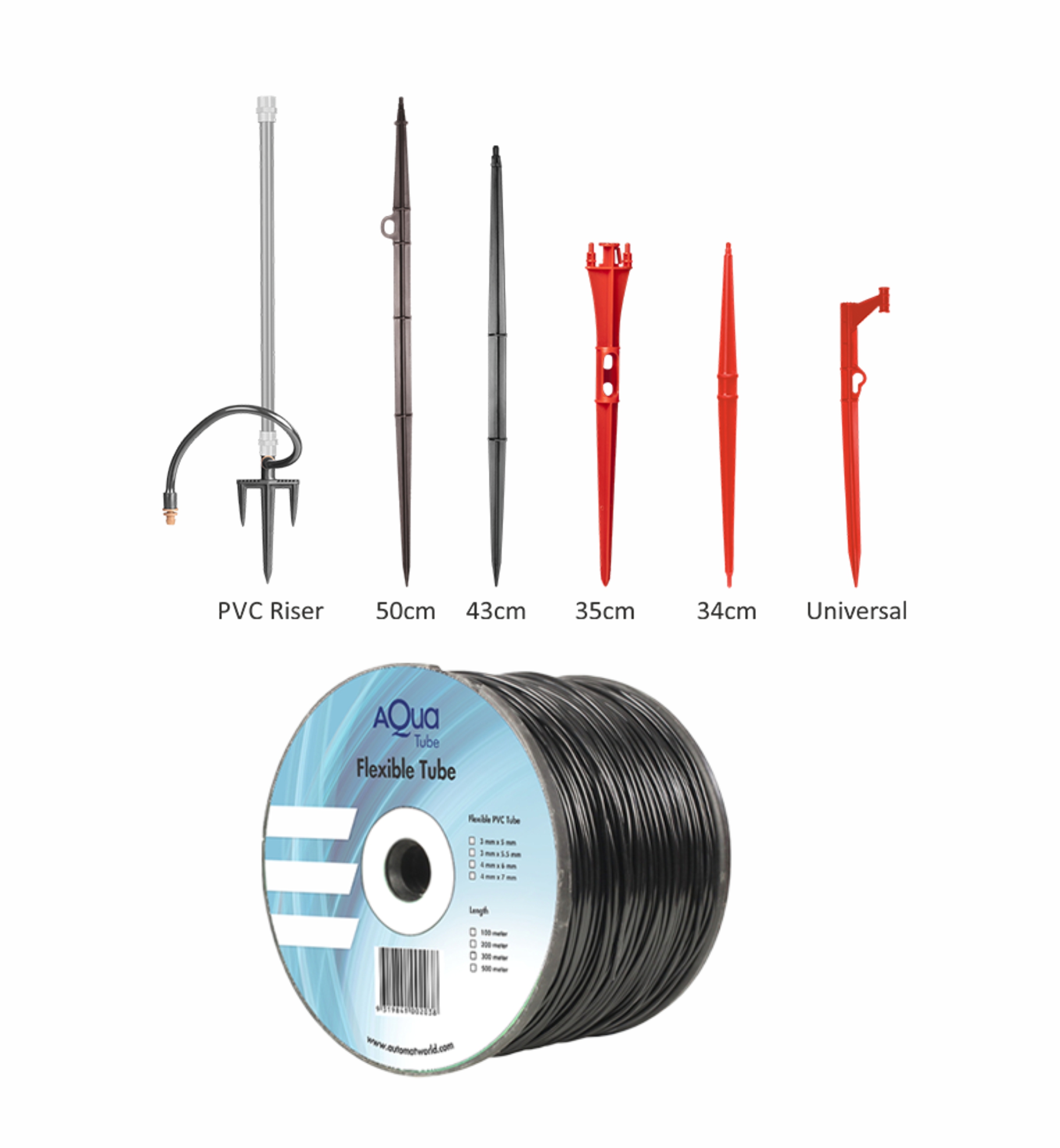

• Easy Connection – Connects micro sprinklers to lateral pipes.
• Wide Compatibility – Works with various micro sprinkler models.
• Uniform Irrigation – Ensures reliable water distribution.

Working Pressure: Upto 6 Bar.

Chemical Resistance: UV Stabilized and oxidation resistance.

• Complete Irrigation Range – Wide selection of accessories for diverse irrigation needs.
• Versatile Applications – Suitable for various crops, layouts, and irrigation systems.
