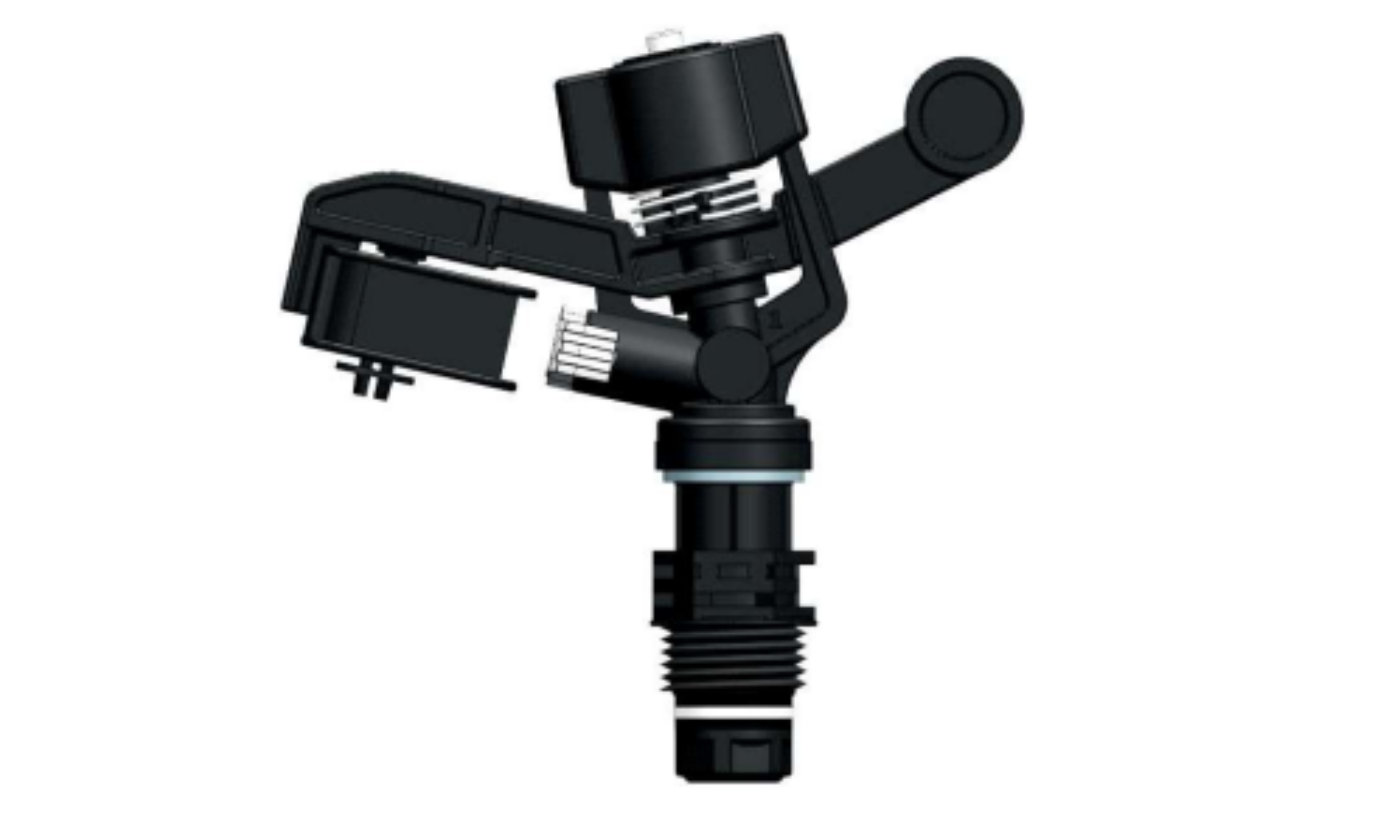

AQ-22LAW (Low Angle wedge drive)
The AQ-22LAW (Low Angle wedge drive) Under Tree Sprinkler is a high-performance plastic sprinkler designed for precision irrigation in orchards, plantations, and other agricultural environments. Built with heavy-duty materials that resist corrosion and radiation, it delivers optimal water distribution, even at low pressure, ensuring efficiency in challenging settings such as banana plantations and vineyards. Its interchangeable nozzles offer flexible irrigation solutions with varying trajectory angles
Features
- Durable Design: Constructed from heavy-duty plastic for long-lasting use, resistant to both corrosion and UV radiation
- Stainless Steel Components: Features a stainless steel pivot pin and springs for enhanced durability
- Easy Maintenance: Color-coded bayonet nozzles allow for quick and simple service
- Adjustable Trajectory: Three trajectory angles (9°, 12°, 14°) can be easily modified by swapping nozzles
- High Distribution Uniformity: Recommended for spacing up to 10 meter (33 feet), ensuring even water distribution
Technical Specification
- Connection size - ½” BSP/NPT Male Thread
- Pressure Range: 1-3 kg/cm² (14-43 Psi)
- Flow Rate Range: 167-416 l/h (0.7-1.8 GPM)
- Coverage Diameter: 13.5 19.0 meters (44.3-62.3 feet)
- AQ - 22LAW Trajectory Angle: 12°
