Turf Irrigation

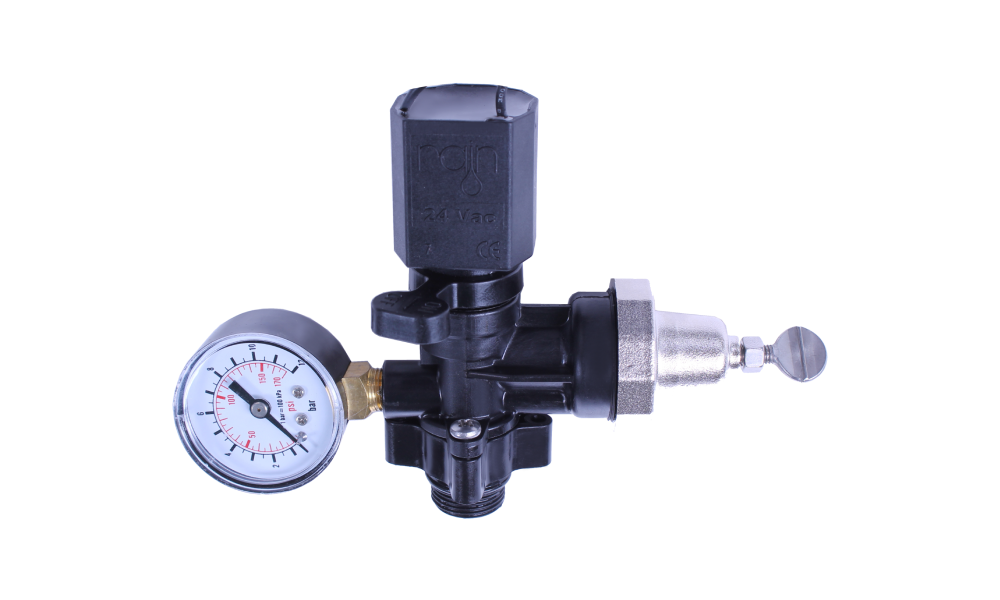

Adjustable Pressure Regulator
The pressure regulator, which is compatible with all RAIN solenoid valves, allows for adjustment of the output pressure from the solenoid valve. The outlet pressure of the solenoid valve can be adjusted from a minimum of 1 bar to a maximum of 7 bar. The pressure difference between inlet and outlet is a minimum of 1 bar.
Features
- Adjusts the outlet pressure of the solenoid valve
- Inlet pressure min 2.0 bar
- Max. inlet pressure 10.0 bar
- Minimum adjustment delta 0.5 bar
- Min temperature +4°C
- Maximum temperature 70°C
- Minimum inlet pressure at the solenoid valve 2.0 bar
- Made of nylon and fiberglass
- Manometer reading
- Adjustment screw
Technical Specification
- Pressure output: min 1.0 bar max 7.0 bar.
- Pressure input: max 12 bar.
- Mini differential pressure 1.0 bar.
- Temperature: min +4°C max 70°C.
