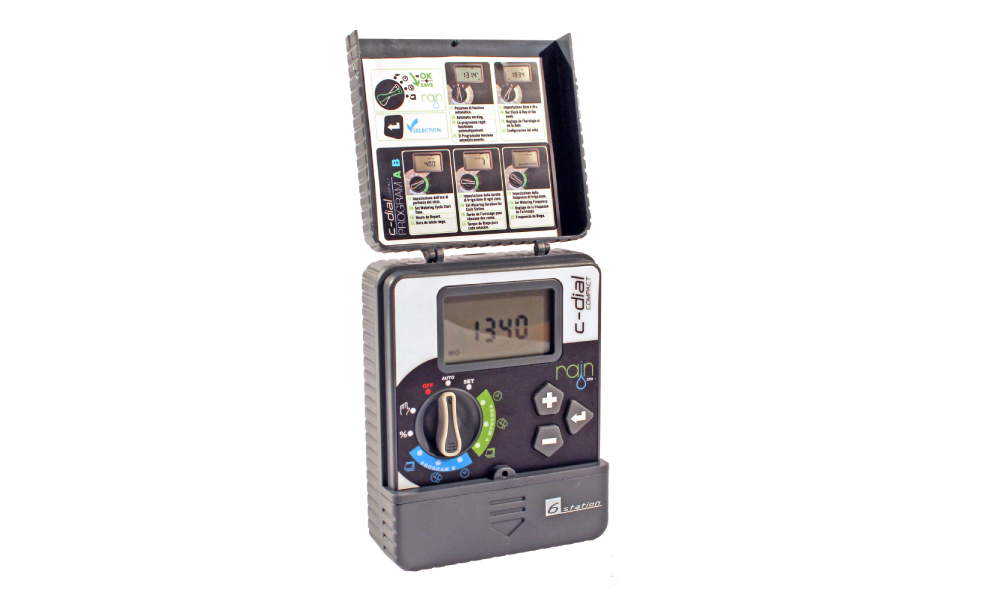

C-Dial Indoor (24 vac & 9 vdc)
C-DIAL is a new and unique electronic controller 4-6 station indoor for residential application. The C-dial family is available at the same price both 24 VAC or 9 VDC solenoid. It follows the Rain’s controller’s philosophy and it allows to easily set the programming in 3 steps: start time, duration, frequency.
Features
- 4 - 6 stations models.
- Indoor Model.
- Operating 9 VDC latching solenoids only.
- Electrical Power Supply 4 x 1.5 volt AA alkaline batteries (not included).
- 2 independent programs.
- 2 independent start times (1 per each program).
- Run Times: 1 min. to 240 min per station.
- Next start time visualization.
- Watering cycles: from 4 per day, up to 1 each 19 days.
- Watering Schedule: 7 day calendar.
- Water Budgeting Mode from 10% to 200%.
- Rain Sensor Inlet.
- Freeze - program function (OFF).
- Low - battery function.
- Permanent Memory. It saves programs also without power.
- Master Valve/Pump 24 VAC outlet can be enabled or disabled by station.
- Power Failure: 2 x 1.5 volt AA alkaline battery permanently maintains programs. (not included).
- Pump Start Relay.
- Permanent Memory Saves programs during power outages.
- Indoor Models with External Transformer.
- Electrical Power Supply: 220 VAC 50Hz.
- Electrical Outputs: 24 Volts AC, 0.8 AMP.
