Impact Sprinklers

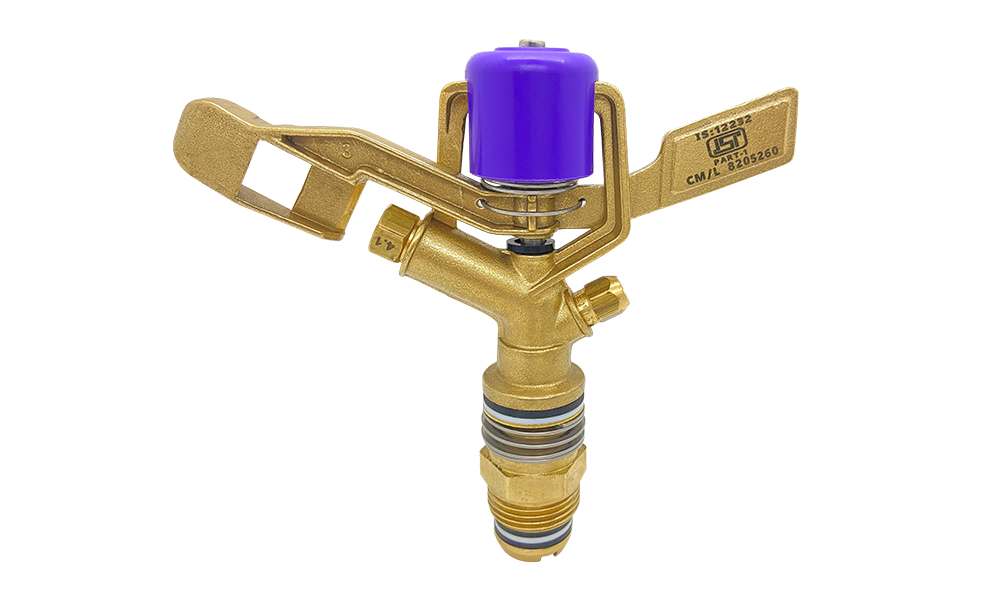

HT-20PH

Body and nozzles are made up of Brass for long-lasting performance and durability.

Crops:

Highly recommended for the irrigation of Groundnut, Jowar, Paddy and Vegetables.

DOWNLOAD BROCHURE

Features

Pressure die casted Brass Body and arm for consistency in performance.

Heavy duty Brass Nut, Tube & Nozzles.

Stainless Steel Pivot Pin and Springs.

Bearing & Sealing washers are made of material for extending life.

Available in Heavy & Light weight Models.

Heavy duty Brass material for long life.

Sturdy Sprinkler design give no variation in performance during.

Frequently shifting of HDPE line in the field.

Technical Specification

Connection size - ¾'' BSP/NPT male threaded in .

Recommended Pressure 1.0 - 3.0 kg/cm².

The sprinkler perform well at 0.5 kg/cm² pressure, will help to irrigate crops in low pressure areas.

Recommended spacing up to 12 mtr for higher distribution uniformity.

Trajectory Angle: 27°.

Radius coverage area is 9 mtr.
