Impact Sprinklers

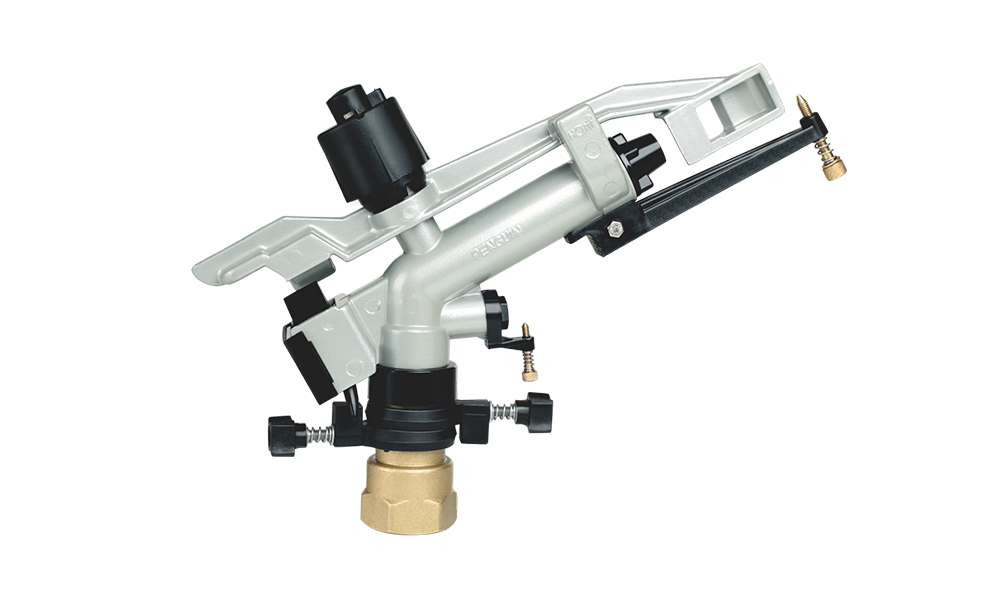

HT-40G (Penguin)
Aluminium die casted body and arm with jet break screw to change the water jet from heavy droplets to fine spray.
Crops:
- Suitable for over tree irrigation for bigger crops like sugarcane, oats, maize, tea, coffee, fodder, landscape, etc. and horticulture also for pastures and dust suppression.
Features
- Aluminium Pressure die casted Body and arm.
- Heavy duty brass nut, tube, nozzles & Diffusor Screw.
- Stainless Steel Pivot Pin, springs, Nut and bolt.
- Plastic parts made of engineering plastic for durability.
- Available both Full Circle & Part -circle design.
- Jet breaker screw to change the water jet from heavy droplets to fine spray.
Technical Specification
- Connection Size- 1¼'' BSP/NPT Female threaded.
- Recommended Pressure 2.0 - 5.0 kg/cm² or 30 - 70Psi.
- Recommended spacing up to 30 mtr for higher distribution uniformity.
- Trajectory Angle: 30°.
- Radius coverage area is 26 mtr.
How it works?
HT-40G (Penguin)
Please watch the video to learn more about the product.
For any queries, please feel free to reach out to us.
