HT-43G (Skipper)


Impact Sprinklers

HT-43G (Skipper)

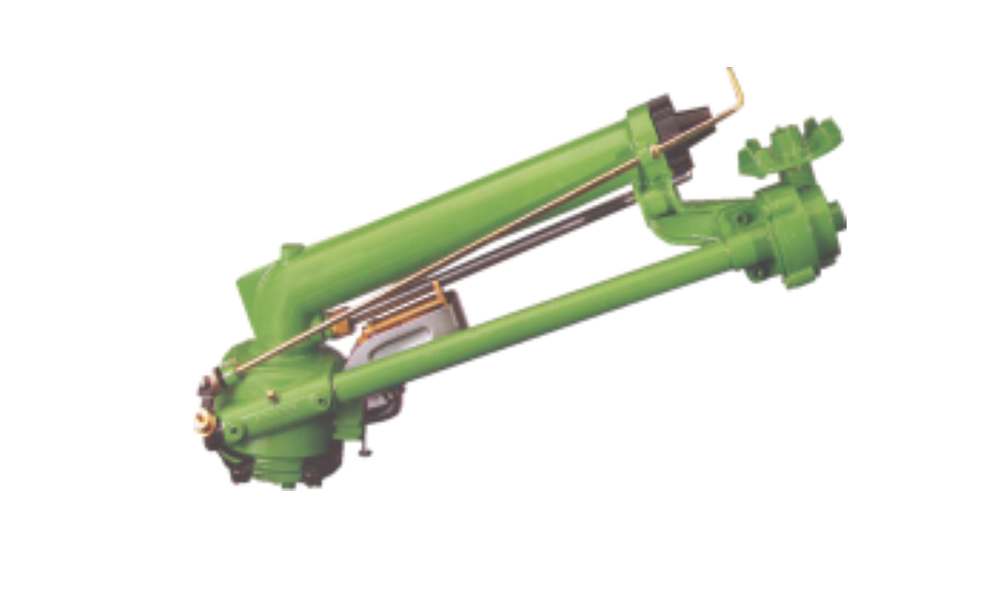

Skipper is a full and part circle rain gun. It can be equipped with nozzles of various diameters and an adjustable jet-breaker which provides a light and uniform rainfall all over the watered area. Its sizes and features have been designed to obtain the highest watering efficiency. Note that the Skipper is a gear driven sprinkler and with its smooth rotation does not cause the vibration damage to supporting infrastructure that similar sized impact sprinklers do.

Crops:

  • Suitable for over tree irrigation for coffee, tea, sugarcane, fodder crop, Landscape and horticulture also for pastures and dust suppressions.

Features

  • Both Part Circle & Full Circle adjustments.
  • Adjustable Jet breaker to provide uniform distribution.
  • Equipped with interchangeable nozzles of different sizes for various applications.
  • Inner rotating system supported by stainless steel ball bearing to guarantee no strain and no oxidation due to humidity.

Technical Specification

  • Connection size 1½'' BSP/NPT Female Thread Connection.
  • Radius coverage area is 24 mtr.
  • It has a standard elevation angle of 25°, but can be supplied with 'flip' nozzles which give 22° or 28° elevations.
