Impact Sprinklers

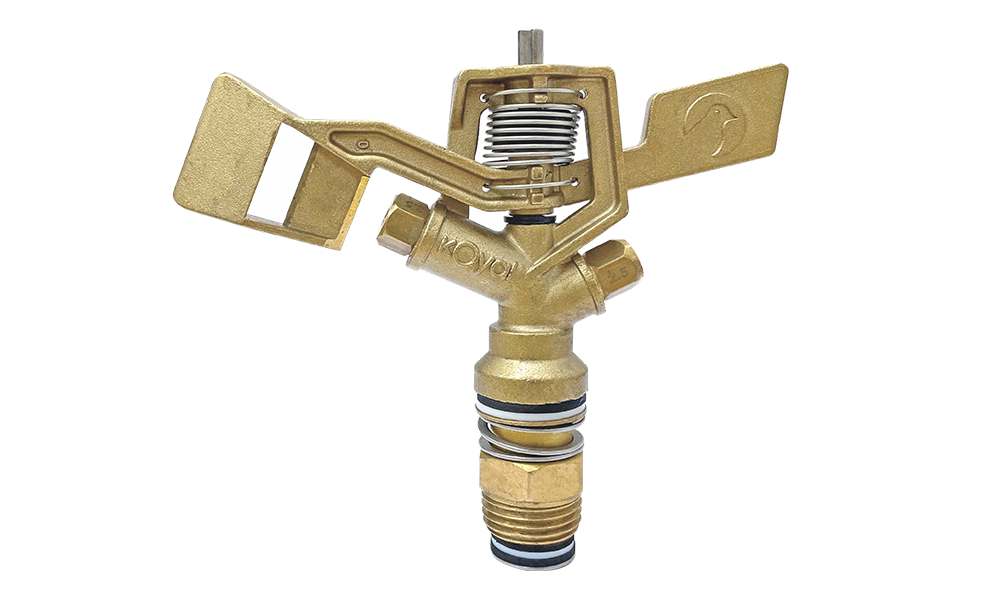

HT-5DN (Koyal)

Body and arm made of heavy duty brass. Primarily used in irrigation by overhead irrigation solid set systems – portable or permanent.

Crops:

All row crops like carrot, radish, potato, tomato irrigated by overhead irrigation.
Agriculture field or landscape application, and centre pivots.

DOWNLOAD BROCHURE

Features

Connection size - 1/2'' BSP/NPT Male threaded.

Nozzle size above 3.17mm with stream straightening vane for long range.

Heavy duty brass body, arm, Nut, tube and nozzles.

Pivot pin and Springs made of Stainless steel.

Technical Specification

Recommended Pressure 1.0 - 3.0 kg/cm² or 15 - 45Psi.

Recommended spacing up to 12 mtr for higher distribution uniformity.

Trajectory Angle: 25°.

Radius coverage area is 12.5 mtr.
