Turf Irrigation

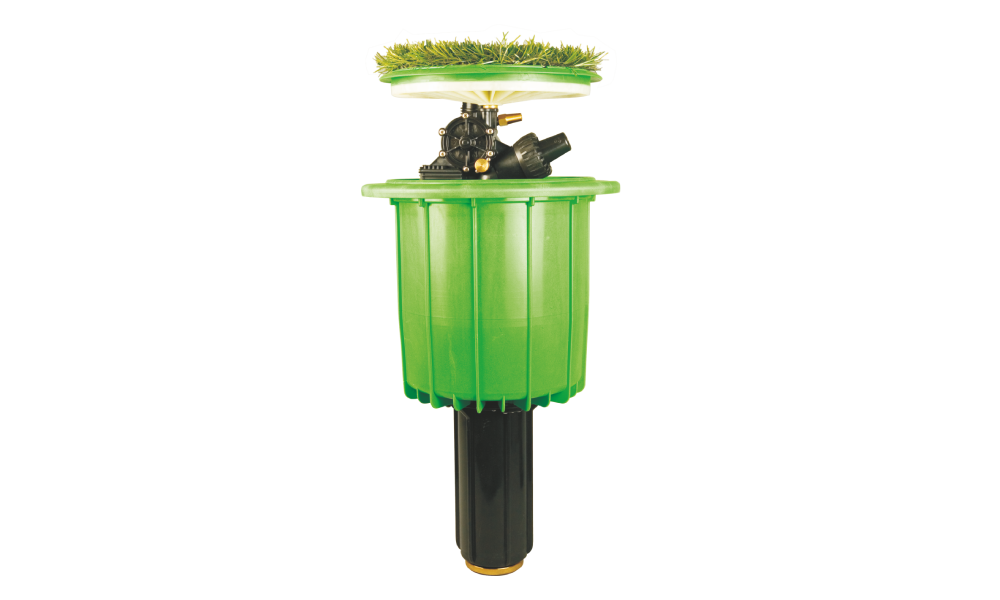

HT-9PGP
POP-UP sprinkler for sport fields. Manufactured as a big irriguns, it allows a large radius of irrigation and can be used on sport fields for football-rugby-hockey-soccer - baseball. The large radius allows the installation at the external of the fields, avoiding damages for players at the internal. It can work with high pressure for maximum distance. A special internal rubber folding top, avoids the passage of powder, sand and dirty water around the telescopic pipe.
Applications
- Football, Hockey, Cricket, Rugby, Synthetic Turf & Golf courses.
Features
- Uniform water distribution.
- Smooth gear drive operation.
- Large radius reduces heads on playing surface.
- Pop-Up sprinkler for large gardens and parks, manufactured with shock proof outer case and rubber cover.
- Technically built as a turbine big irrigun, it gives a long radius, and it is particularly suitable for golf courses, (can be possible one-two only sprinkler each green), and football grounds.
- The external spinner and the jet-breaker, grant the best water- distribution.
- The Sprinkler arc works with low or high pressures and can mount nozzles from 16 to 24 mm diameter.
- Best Suited for golf courses, Stadium and Big Parks.
- Low operating pressure -> Low HP Pump Set -> Low Operating Cost.
- Low Filtration Cost -> Low Initial Cost -> Low Maintenance.
- Less Number of Sprinklers per unit area, there by lower system cost.
- Precipitation Rate 6.8 - 8.8 mm per hour.
- Jet Length 29.5 mtr - 48.5 mtr.
- Rubber covered cap for player protection.
- Optional synthetic turf top available.
Technical Specification
- Maximum operating pressure range 3.0-8.0 kg/cm².
- Discharge range 314-1084 ltr/min.
- Radius range 29.5-49.5 meters.
- Precipitation rate range 6.8-8.8 mm per hour.
