Valves

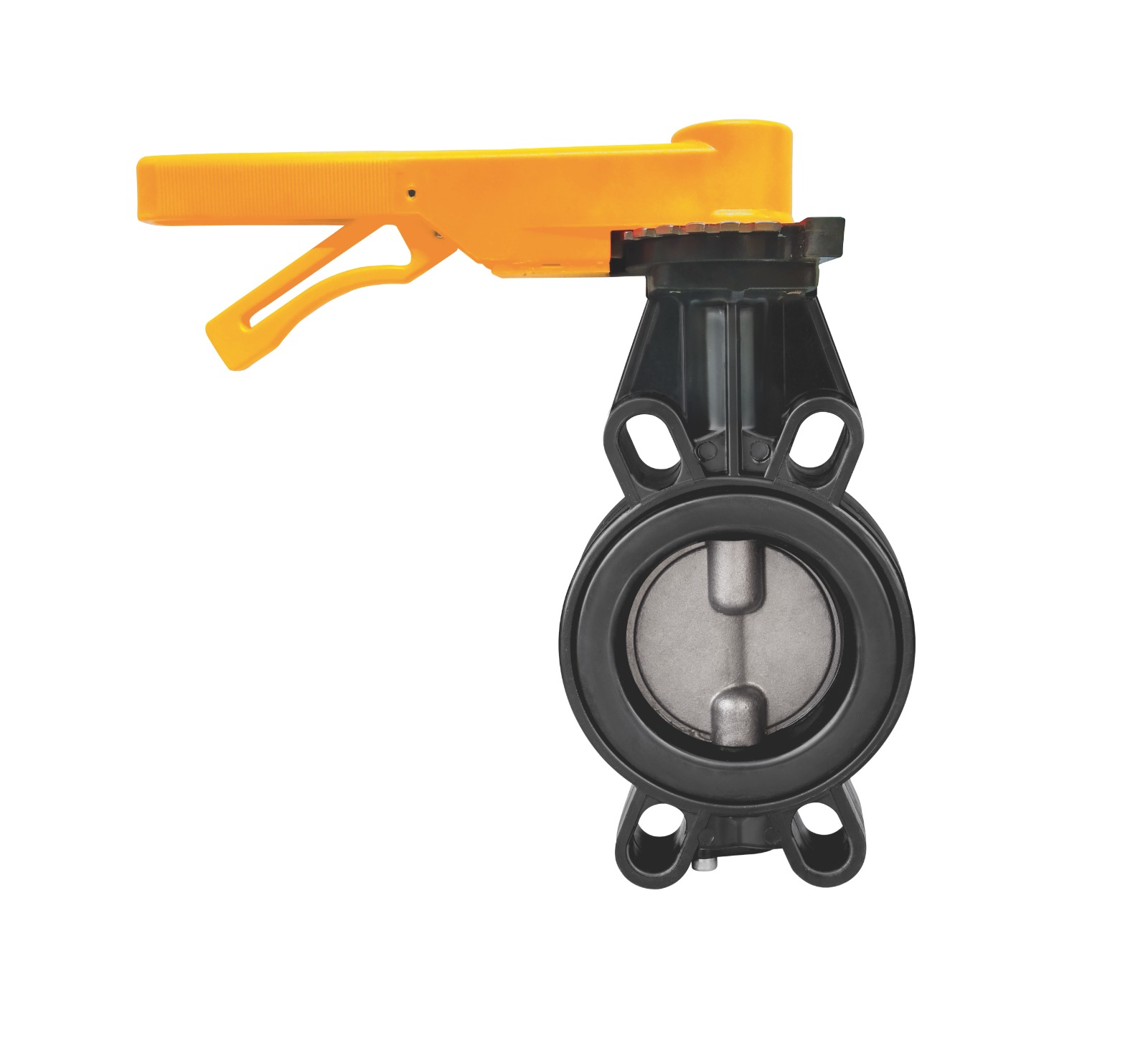

Hybrid Wafer Type Butterfly Valve
Body made of high quality PVC for strength and chemical resistance. Disc made of stainless steel (SS304/316) for higher pressure rating and even. This butterfly valve type design ensures reliable operation in various industrial and irrigation applications.
Features
- Light Weight, easy to install.
- One Piece Body made of U-PVC.
- Disc designed ensuring low torque and low pressure loss.
- Suitable for piping in a limited space.
- Rust Prevention: Main parts such as Disc shaft and small parts such as bolting washers are made of high graded stainless (SSS304/316) for rust prevention.
- Lock Plate provided with throttling notches every 15° in balancing.
Technical Specification
- Nominal Size (DN): 50mm (2''), 65mm (2½'') & 80mm (3'').
- • Nominal Pressure (PN): PN10 class 125/150.
- Fluid Handled: Liquid.
- Manufacturing Standard: 15: 13095.
- Hydrostatic Test Pressure of Body: 15 kg/cm (at 27° C temp).
- Hydrostatic Test Pressure of Seat: 10 kg/cm (at 27° C temp).
- Temperature Range: -5°C to 50°C.
- Service Application: Regulating & Tight Shut Off.
- Type of Construction: Wafer Type.
- Face to Face Dimension: For 2'', 2%'' & 3'': 46mm.
- Orientation of Lever: Parallel to Flow, when valve fully open.
